Metal Injection Molding (MIM)

Survex MIM Metal Injection Molding

Metal Injection Molding

is a highly cost-effective manufacturing technology and produce the high quality finished metal components.

MIM Advantage:

-Complex Configuration and three dimension shapes
-Large production volumes
-Tight tolerance
-High tensile strength
-Short lead time
-Theoretical density of +95% obtained
Survex Metal Injection Molding (MIM)

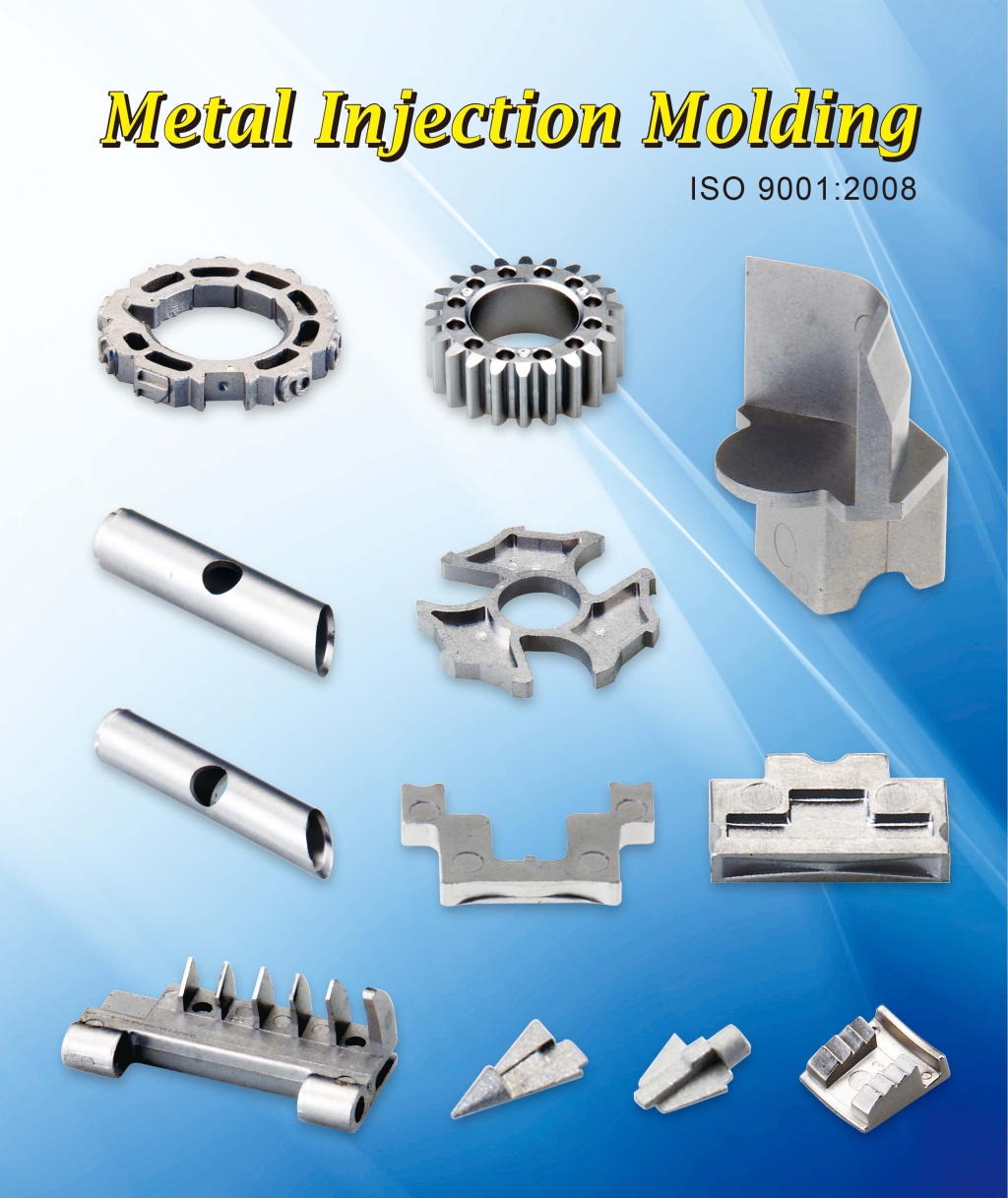

MIM Components are used in......

*Gear
*Electrical connectors
*Eyewear components
*Hand Tool products
*Watch components
*Mobile phone parts
*Locks
*Custom machining parts

Material

Description Material Density
g/cm3
Mechanical Properties
Yield
Strength
Tensile
Strength
Hardness
(psi) (%)
Alloy Steel Fe-2%Ni 7.5 42,000 40% HRC25
4605
(Fe2%Ni+0.5%Mo)
7.5 64,000 15% HRC20
Fe-8Ni 7.5 60,000 26% HRC20
4140 7.5 240,000 3% HRC20
Stainless Steel 316L 7.7 73,950 45% HRB75
17-4PH / 630 7.6 130,000 8% HRC20
420J2 7.6 252,000 3.5% HRC25
440C 7.6 240,000 1% HRC30
Alloy Tool Steel SKD-11 7.54 67,000 1% HRC35
SKH51
(HotTreatment done)
7.54 --- --- HRC64
